Stop your clikcin’ and a’drawin’ there for a few seconds. There’s a way to make your SolidWorks drawing experience much more enjoyable and your Bill of Material manipulation a whole lot easier.

SOlidWorks BOM’s have gotten a lot of nice functionality, but somehow, there’s bits and pieces of working with them that 1) take getting use to or 2) make you very frustrated. Two of those things are 1) getting to the BOM properties and 2) moving the BOM.

How can you ease your part list woes and move on to the excitment of Section Views and Details? The ALT key. Here’s how it works…


Use ALT to Display BOM Properties

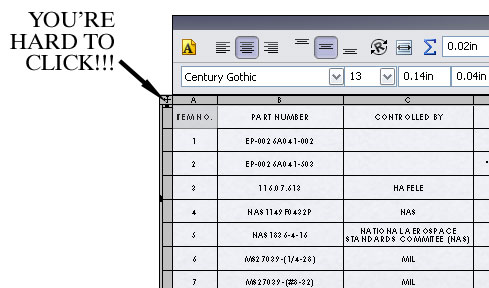

TO get to SOlidWOrks BOM Properties, you usually have to select the top left corner. That spot is tiny and only shows up when clicked. So, instead, just hold down the ALT key and click on your BOM. Instantly, the BOM Property Manager will appear for you to make any anchor, part grouping or item number changes. Nice huh?

Use ALT to Move the BOM
As mentioned above, you have to select the top left corner to move your BOM. Instead, hold down the ALT key then press and hold down the left mouse button to drag it around where you like. It will snap to Drawing border edges and you’ll be a much more peaceful person.

This should help you out a bit, I hope. Getting to the properties is one of those things that happen quite often when working in drawings. It’s nice to be able to get to it fast, ya think?
