SolidWorks World 2014 has yet to officially start, but announcements and launches are already in the mix. We’re at the Stratasys Press Event this afternoon where they’ve just announced their release of the first 3 color, multi-material 3D printer–the Objet500 Connex3. This is the real deal folks. It’s available as of today with companies like Trek and Legacy Effects beta testing the machine over the last several months. It’s the newest in their Objet line of Connex tech and we’re convinced you’ll find it quite interesting.

stratasys-objet500-connex3-3d-printer-solidsmack-02

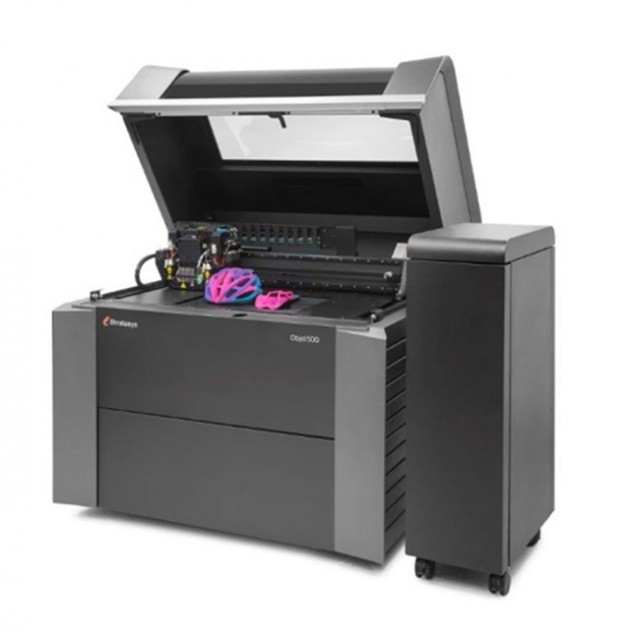

The Stratasys Objet500 Connex3

Stratasys has launched the new Objet500 Connex3 3D printer atop their line of Objet Connex line of printers and it’s no surprise. The Connex printers have always been capable of combining two model materials to create composite mock-ups in a single print job. The Objet 500 Connex3 doesn’t have the fancy Objet1000 jingle, but it is expanded upon the Objet 500 Connex to use three materials in a single print job. We’re shy on specs at the moment, but will update as soon as the Objet500 Connex3 page goes live. Update: Here’s a quick overview of the specs (pdf) on the printer.

Model Materials:
Vero family of translucent to opaque color materials
Tango family of rubber-like flexible materials, translucent and opaque
Medical: MED610
Digital ABS: ivory, green
Digital ABS2: ivory, green
Durus: RGD430
High Temperature: RGD525
FullCure: RGD720
Support Material: SUP705

Build Size:
490 x 390 x 200mm (19.3 x 15.4 x 7.9 in.)

Layer Thickness:
Horizontal build layers down
to 16-microns (0.0006 in.)

Size and Weight:
Objet500 Connex3
1400 x 1260 x 1100 mm
(55.1 x 49.6 x 43.3 in.)
430 Kg (948 lbs)
Material Cabinet
330 x 1170 x 640 mm
(13 x 46.1 x 26.2 in.)
76 Kg (168 lbs)

There are three aspects of this printer that stand out. Three aspects that change up the typical output you’re use to seeing from a 3D printer and three aspects that frankly have us quite floored.

Triple-jetting technology – “[The] Objet500 Connex3 Color Multi-material 3D Printer features a unique triple-jetting technology that combines droplets of three base materials to produce parts with virtually unlimited combinations of rigid, flexible, and transparent color materials as well as color digital materials – all in a single print run.”

and the jaw dropper…

stratasys-objet500-connex3-3d-printer-solidsmack-01Three Primary Color Materials Combine to Create a Spectrum of Vibrant Colors – “Similar to a 2D inkjet printer, three color materials – VeroCyan, VeroMagenta and VeroYellow – are combined to produce hundreds of vivid colors. These color materials join Stratasys’ extensive range of PolyJet photopolymer materials including digital materials, rigid, rubber-like, transparent, and high temperature materials to simulate standard and high temperature engineering plastics.”

and the other jaw dropper…

stratasys-objet500-connex3-3d-printer-solidsmack-03Six color pallets – “The Objet500 Connex3 Color Multi-material 3D Printer also features six palettes for new rubber-like Tango colors, ranging from opaque to transparent colors in various shore values to address markets such as automotive, consumer and sporting goods and fashion.”

While we’ve seen some companies talk and talk about multi-color printing, we’re excited to see it finally happening. It’s not full-color desktop 3D printer by any means and priced at the pro level for sure. We’ll have more info to come on that once it becomes available. Video and press release below.

Press Release / Click to expand

STRATASYS REDEFINES PRODUCT DESIGN AND MANUFACTURING
WITH WORLD’S FIRST COLOR MULTI-MATERIAL 3D PRINTER

The new Objet500 Connex3 is the world’s most versatile 3D printer, delivering unparalleled color product realism

New 3D Printer allows better decision making, improves design & manufacturing efficiencies and produces better products, faster



Minneapolis, MN; Rehovot, Israel – January 26, 2014 – Stratasys Ltd. (NASDAQ: SSYS), a manufacturer of 3D printers and materials for personal use, prototyping, and production, today announced the launch of the ground-breaking Objet500 Connex3 Color Multi-material 3D Printer, the first and only 3D printer to combine colors with multi-material 3D printing.



Glasses 3D printed on the Objet500 Connex3 Color Multi-material 3D Printer using Opaque VeroYellow (the frame), rubber-like black (TangoBlackPlus – also on the frame), and a unique translucent yellow tint (the lenses) in one print job – no assembly required.

  • and a unique translucent Yellow tint (the lenses) in one print job – no assembly required”.

required rame),and a unique translucent Yellow tint (the lenses) in one print job – no assembly required

A game-changer for product design, engineering and manufacturing processes, the Objet500 Connex3 Color Multi-material 3D Printer features a unique triple-jetting technology that combines droplets of three base materials to produce parts with virtually unlimited combinations of rigid, flexible, and transparent color materials as well as color digital materials – all in a single print run. This ability to achieve the characteristics of an assembled part without assembly or painting is a significant time-saver. It helps product manufacturers validate designs and make good decisions earlier before committing to manufacturing, and bring products to market faster.





Bike helmet 3D printed on the Objet500 Connex3 Color Multi-material 3D Printer in one print job using VeroCyan, VeroMagenta, and VeroYellow

“Stratasys’ goal is to help our customers revolutionize their design and manufacturing processes,” says Stratasys CEO David Reis. “I believe our new Objet500 Connex3 Color Multi-material 3D Printer will transform the way our customers design, engineer and manufacture new products. In general and with the Connex technology in particular, we will continue to push the envelope of what’s possible in a 3D world.“

Engineers at beta user Trek Bicycle in Waterloo, Wisconsin are using the Objet500 Connex3 Color Multi-material 3D Printer for assessment and testing of accessories like bike chain stay guards and handlebar grips prior to actual production. “The Objet500 Connex3 Color Multi-material 3D Printer changed the way we manufacture at Trek, augmenting our traditional, time-consuming CNC processes with fast, iterative and realistic prototyping and functional testing,” says Mike Zeigle, manager of Trek’s prototype development group.





“Now we produce bicycle parts that look and feel like production parts. We are particularly excited about 3D printing our models directly in color. This gives our designers the ability to graphically display color contact pressure map data on rider contact parts like seats and grips. We are also working on doing the same with FEA & CFD stress data on structural bike components,” adds Zeigle.



Shoes 3D printed on the Objet500 Connex3 Color Multi-material 3D Printer, in one print run, using Vero Yellow, VeroMagenta and rubber-like TangoBlack Plus

Three Primary Color Materials Combine to Create a Spectrum of Vibrant Colors

Similar to a 2D inkjet printer, three color materials – VeroCyan, VeroMagenta and VeroYellow – are combined to produce hundreds of vivid colors. These color materials join Stratasys’ extensive range of PolyJet photopolymer materials including digital materials, rigid, rubber-like, transparent, and high temperature materials to simulate standard and high temperature engineering plastics.



Another First: Flexible Materials in Color*



One of the six new rubber-like Tango color palettes, enabling diverse transparent to opaque colors with additional new Shore A Values, combining various degrees of flexibility & color translucency in one print job*

The Objet500 Connex3 Color Multi-material 3D Printer also features six palettes for new rubber-like Tango colors, ranging from opaque to transparent colors in various shore values to address markets such as automotive, consumer and sporting goods and fashion.*



“Since its introduction in 2007, the Objet Connex Multi-material 3D printing platform has paved the way for the development of advanced 3D printing materials with unique mechanical and thermal properties,” says Stratasys VP of product marketing and sales operations Igal Zeitun. “The Objet500 Connex3 Color Multi-material 3D Printer produces models and parts using photopolymers in vivid colors so you can create colorful models from investigating concepts to pre-production pilot runs.

“As the first true multi-purpose 3D printer, we believe the Objet500 Connex3 Color Multi-material 3D Printer is in a league of its own, enabling you to dream up a product in the morning, and hold it in your hands by the afternoon, with the exact intended color, material properties and surface finish.”

The Objet500 Connex3 Color Multi-material 3D Printer is commercially available today and is sold through Stratasys’ extensive worldwide reseller network.

*The Flexible Materials in Color are expected to be commercially available in Q2/2014.

###

Additional Notes for Editors

The Technology Behind the Innovation
The Objet500 Connex3 Color Multi-material 3D Printer is based on proven Connex technology. Ideal for over-molding with Digital ABS and complex multi-material parts, the Objet500 Connex3 Color Multi-material 3D Printer is designed to enable designers, engineers and manufacturers to create models, molds and parts that match the characteristics of production parts. It 3D prints models and parts with the color, durability and surface finish of end products. This includes achieving excellent mechanical properties such as tensile strength, elongation at break, and multiple hardness shore values, which simulate high performance thermoplastics. It also allows overmolding using durable Digital ABS materials and introduces new Shore A values for Digital ABS, ranging from A27 to A95, a major advantage in manufacturing consumer products.

Featuring a large build envelope, the Objet500 Connex3 Color Multi-material 3D Printer is ideal for high capacity production. Print jobs can run with about 30kg of resin per cycle. True to the high resolutions available with PolyJet 3D printing technology, the Objet500 Connex3 Color Multi-material 3D Printer prints as fine as 16 micron layers for models with superior surface finish and ultra-fine detail.

More information about the Objet500 Connex3 Color Multi-material 3D Printer is available on the Stratasys website at: http://www.stratasys.com/Objet500Connex3.

A digital press kit for the Objet500 Connex3 Color Multi-material 3D Printer is available by visiting the Stratasys online newsroom which contains additional resources including an image gallery, a product video, customer story video, case study, white paper, brochure, color palette, and spec sheet.

Stratasys Ltd. (Nasdaq: SSYS), headquartered in Minneapolis, Minn. and Rehovot, Israel, manufactures 3D printers and materials for prototyping and production. The company’s patented FDM® and PolyJetTM 3D Printing technologies produce prototypes and manufactured goods directly from 3D CAD files or other 3D content. Systems include 3D printers for idea development, prototyping and direct digital manufacturing. Stratasys subsidiaries include MakerBot and Solidscape, and the company operates the RedEye digital-manufacturing service. Stratasys has more than 1700 employees, holds over 500 granted or pending additive manufacturing patents globally, and has received more than 20 awards for its technology and leadership. Online at: www.stratasys.com or http://blog.stratasys.com.
