More recently, a user by the name of 805maker (presumably a maker located in the 805 area code of Santa Barbara, California) shared his build process for creating a home-built 4’x4′ CNC router for his garage using plans he purchased for $75 from Joe’s CNC, a CNC project site.

With a majority of CNC routers this size costing tens of thousands of dollars, 805Maker was capable of building his own for $3,800 including the CAM software, end mills and a dust collector.

“This is the Hybrid 4×4 Rack and Pinion model with a welded base instead of the bolt together unit strut base,” said 805maker. “It’s using a Hitachi M12VC router. Motion is handled by HobbyCNC stepper controller kit and NEMA 23 steppers. It is set up to rapid at 700 in/min. It may be able to go faster, but that’s plenty scary.”

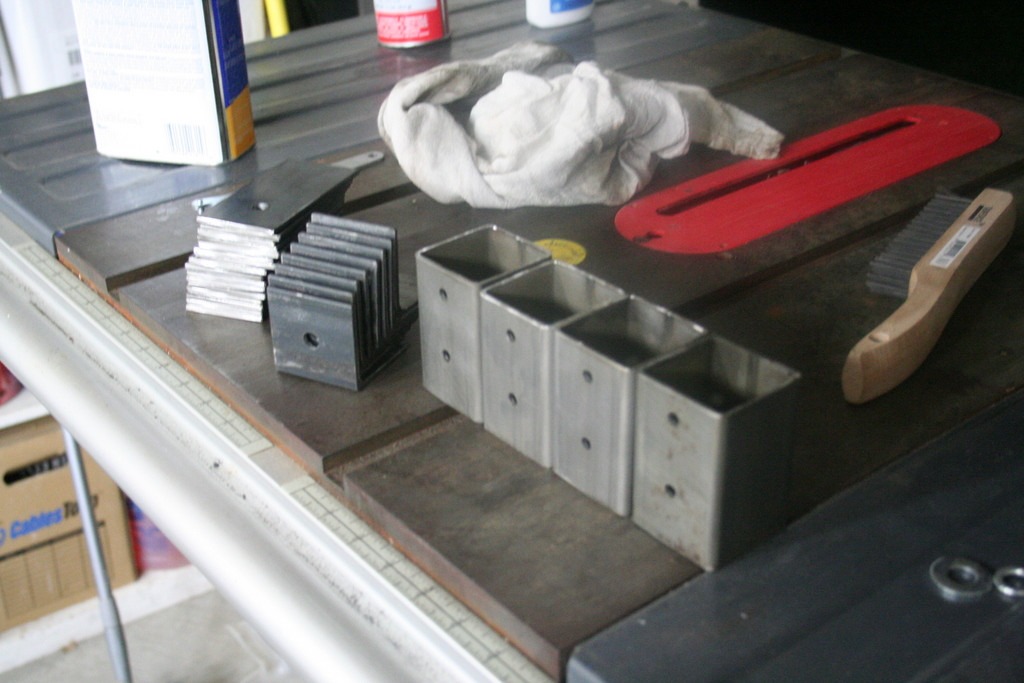

Cutting/Drilling parts needed for the stand

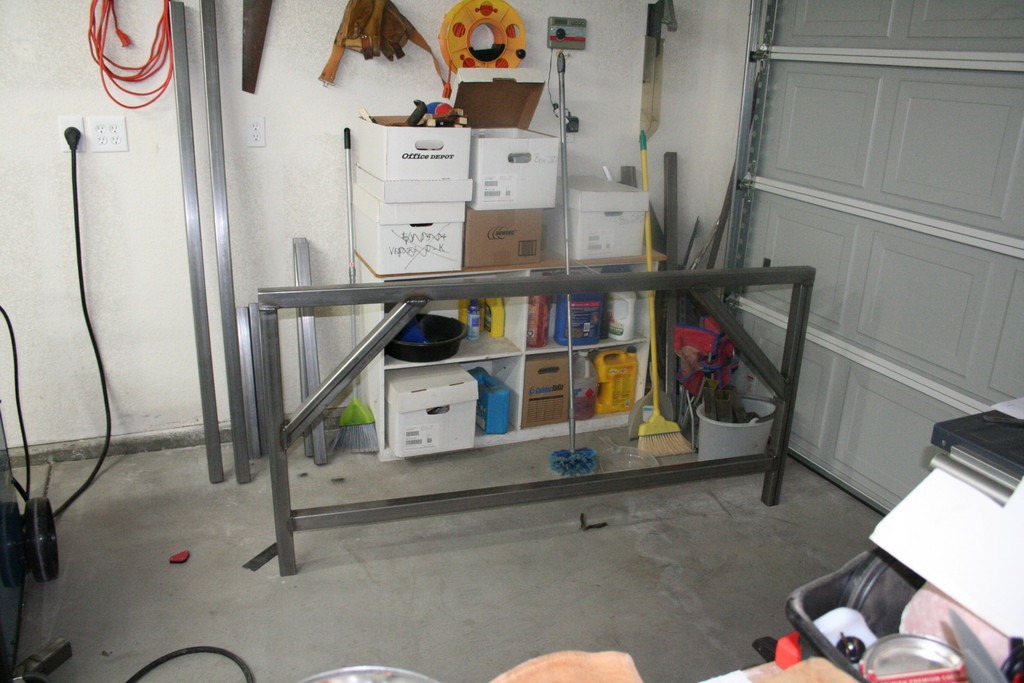

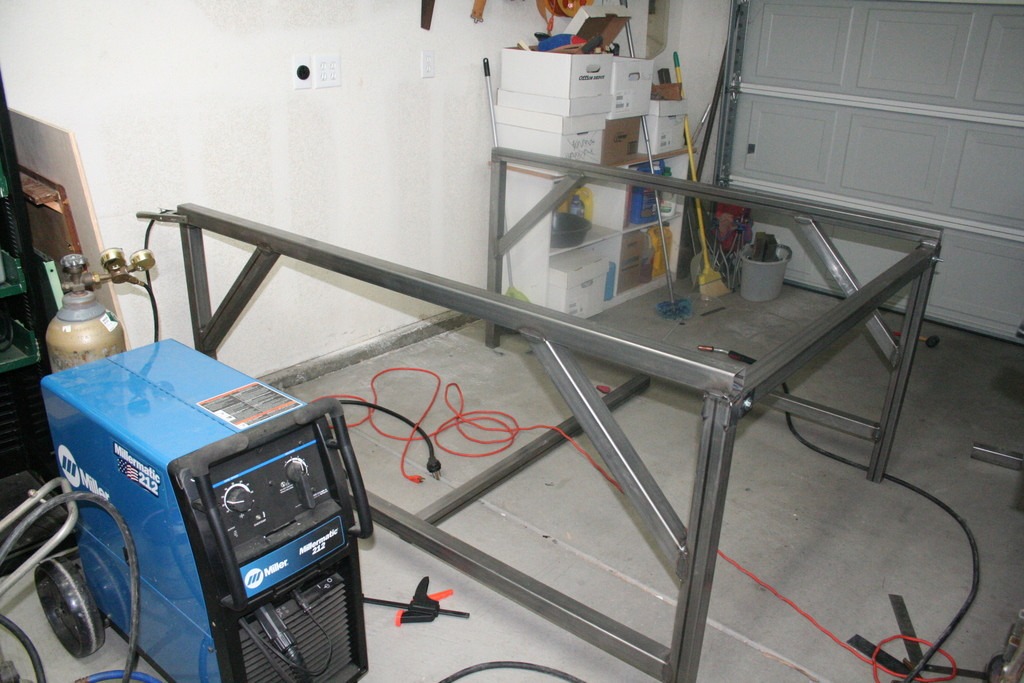

Starting stand assembly

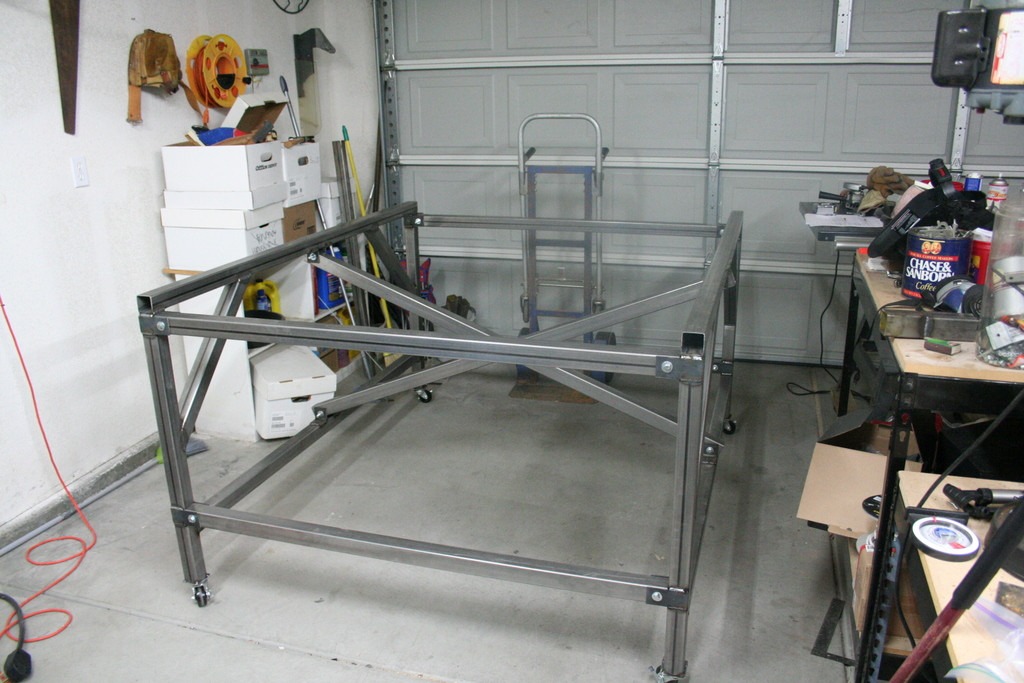

95% assembled and on wheels!

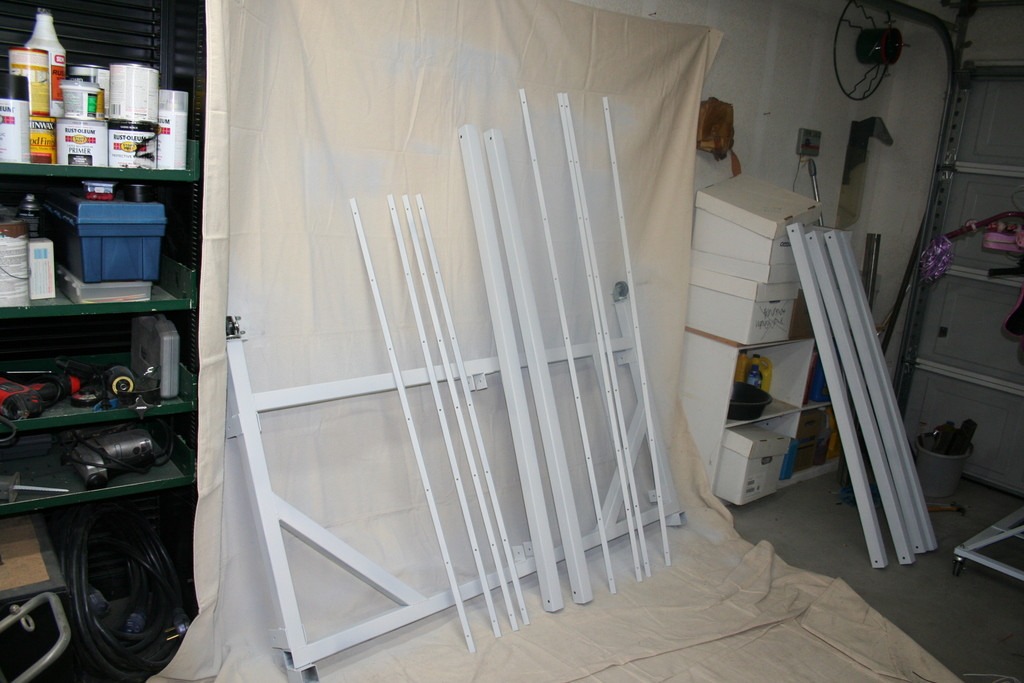

Painting starts!

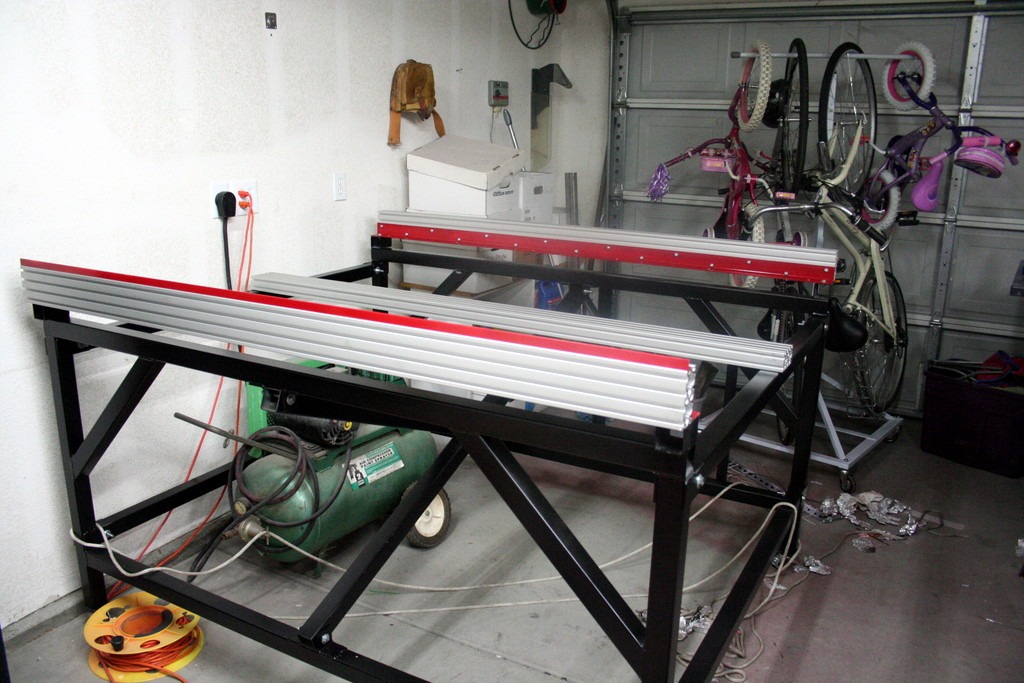

Now it’s starting to look like something.

Lots and lots of holes to drill.

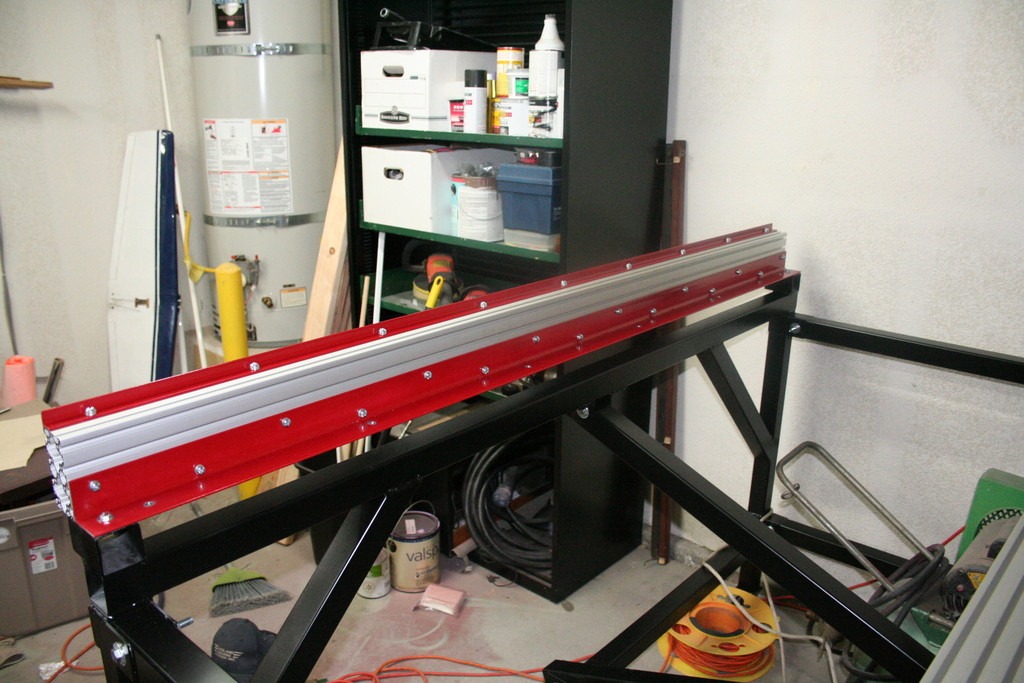

Gantry assembled.

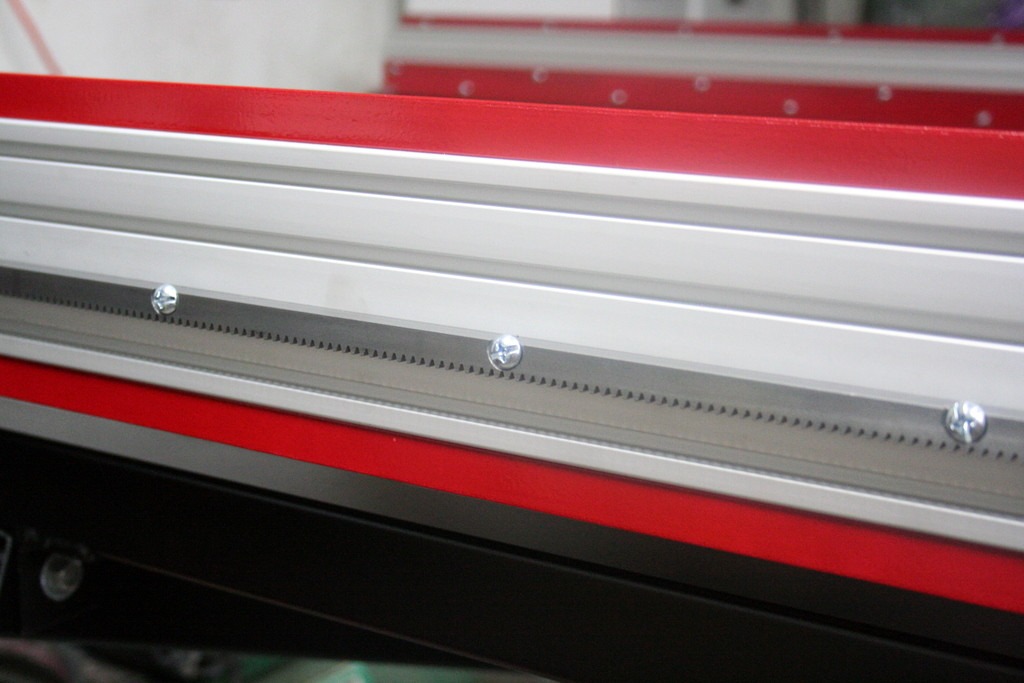

Time to work on electronics / step-down gears for rack/pinion.

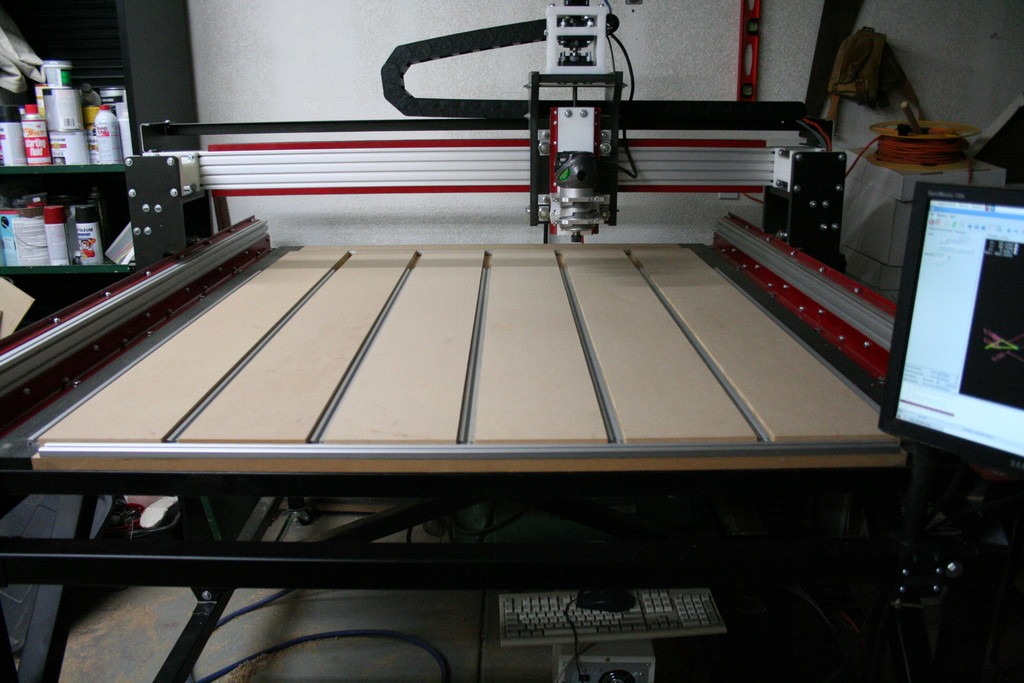

Final assembly.


805maker plans on using his new 4′ x 4′ router for creating speakers, artwork and high-powered rocketry, however “It will very likely end up in the local maker space as soon as they have room for it,” he adds.

To check out his build in-full, head over to his full project build photo album. For your own CNC router build plans, head over to Joe’s CNC.
