A working electronics prototype can create a reassuring sense of progress. The enclosure fits, the firmware runs and the main functions perform as expected on the bench. For a product team, however, the next stage often exposes a different set of problems.
The prototype may still contain hand-soldered modifications, temporary wiring, or components selected simply because they were available in small quantities. Production requires a repeatable design that can be manufactured, assembled, inspected and tested without relying on the engineer who built the first unit.
A clear PCB handoff package gives the manufacturer enough information to quote and build the product accurately.
Why a Working Prototype Is Still Far From Production
Prototypes are built to answer specific questions. One may test the circuit architecture, while another checks the enclosure, connector access or user interface. The parts and processes used to build these units may differ from those planned for production.
Before releasing the design, teams should document every modification made to the approved prototype. A changed resistor value, added jumper wire or cut trace must be reflected in the schematic, layout and bill of materials.
Prototype Assumptions That Can Cause Production Problems
A prototype may function because an engineer selected parts manually, corrected solder joints or adjusted firmware for one particular board. Those interventions can hide issues that appear once multiple units are assembled.
Common warning signs include:
- Components fitted in a different orientation from the design files
- Hand-wired connections missing from the PCB layout
- Parts with limited stock or long lead times
- Connectors that require manual adjustment to fit the enclosure
- Unrecorded changes to component values
- Test procedures known by only one engineer
Each issue should be resolved or formally documented before production files are released.
Mechanical and Electronic Design Must Converge
The PCB should be reviewed alongside the mechanical CAD model. Board dimensions, mounting holes, connector positions and component heights directly affect whether the assembly fits inside the product.
Teams should verify:
- Board outline and thickness
- Mounting-hole locations
- Connector position and orientation
- Cable routing and bend radius
- Display and button alignment
- Battery and antenna clearances
- Thermal paths and ventilation
- Access for programming and testing
- Keep-out areas around fasteners
A physical enclosure prototype can expose conflicts that remain difficult to identify on screen.
Preparing the PCB Fabrication Package
The fabrication package defines how the bare circuit board should be produced. Every file should use a clear revision identifier so the manufacturer and design team can confirm that they are reviewing the same release.
Gerber and Drill Files
Gerber files generally describe the copper layers, solder mask, silkscreen and board outline. Separate drill files identify plated and non-plated holes.
After exporting these files, review them in an independent Gerber viewer. This step can reveal missing layers, incorrect board outlines, unsuitable apertures or export settings that do not match the design.
File names should also be unambiguous. Labels such as “final,” “new final” and “final version 2” make version control harder. A project name, board identifier and revision number provide a clearer system.
Stack-Up and Materials
The fabrication notes should specify the layer count, finished board thickness, copper weight and base material. Designs with controlled impedance need additional information about target values, relevant traces and reference layers.
The appropriate construction depends on the product. Rigid FR-4 boards suit many conventional devices, while compact, wearable or mechanically complex products may require flexible or rigid-flex designs. Applications involving demanding thermal conditions may call for metal-core or other specialised materials.
When a project needs custom fabrication, the supplier’s published process range matters — wonderfulpcb.com lists rigid, flexible and rigid-flex options. The final material and stack-up should be confirmed against the product’s performance targets and manufacturing constraints.
Dimensions and Tolerances
Critical dimensions belong in a fabrication drawing rather than being left for the supplier to infer from the design database.
The drawing may include:
- Finished board dimensions
- Board-thickness tolerance
- Hole sizes and tolerances
- Routed slots and internal cut-outs
- Edge connector requirements
- Controlled-depth features
- Panelisation restrictions
- Dimensions that affect enclosure fit
The mechanical drawing and PCB layout should share the same board outline, origin and revision.
Surface Finish and Board Markings
The production notes should identify the required surface finish, solder-mask colour and silkscreen requirements. Selection depends on factors such as component pitch, storage conditions, service environment and assembly process.
Reference designators, polarity indicators and pin-one markings should remain legible after assembly. These markings help during inspection, debugging and future repairs.
Preparing the PCB Assembly Package
The assembly package tells the manufacturing team which parts belong on the board, where they should be placed and how the completed PCBA should be evaluated.
Build a Complete Bill of Materials
A production BOM should identify every component precisely. Useful fields include:
- Reference designator
- Quantity
- Component description
- Manufacturer
- Manufacturer part number
- Package or footprint
- Approved alternative parts
- Do-not-fit status
Descriptions such as “10k resistor” leave too much room for interpretation. Tolerance, power rating, voltage rating, package size and other relevant specifications should be included.
Verify Pick-and-Place Data
Centroid or pick-and-place files define the location and rotation of surface-mounted components. CAD tools may represent rotation differently, so the exported data should be checked against the assembly drawing.
Orientation deserves particular attention for:
- Integrated circuits
- Diodes
- Electrolytic capacitors
- LEDs
- Connectors
- Sensors
- Switches
Clear polarity and pin-one indicators on both the PCB and assembly drawing reduce ambiguity.
Define the Assembly Process
The component mix influences the required assembly method. A board may use surface-mount components, through-hole parts or a combination of both.

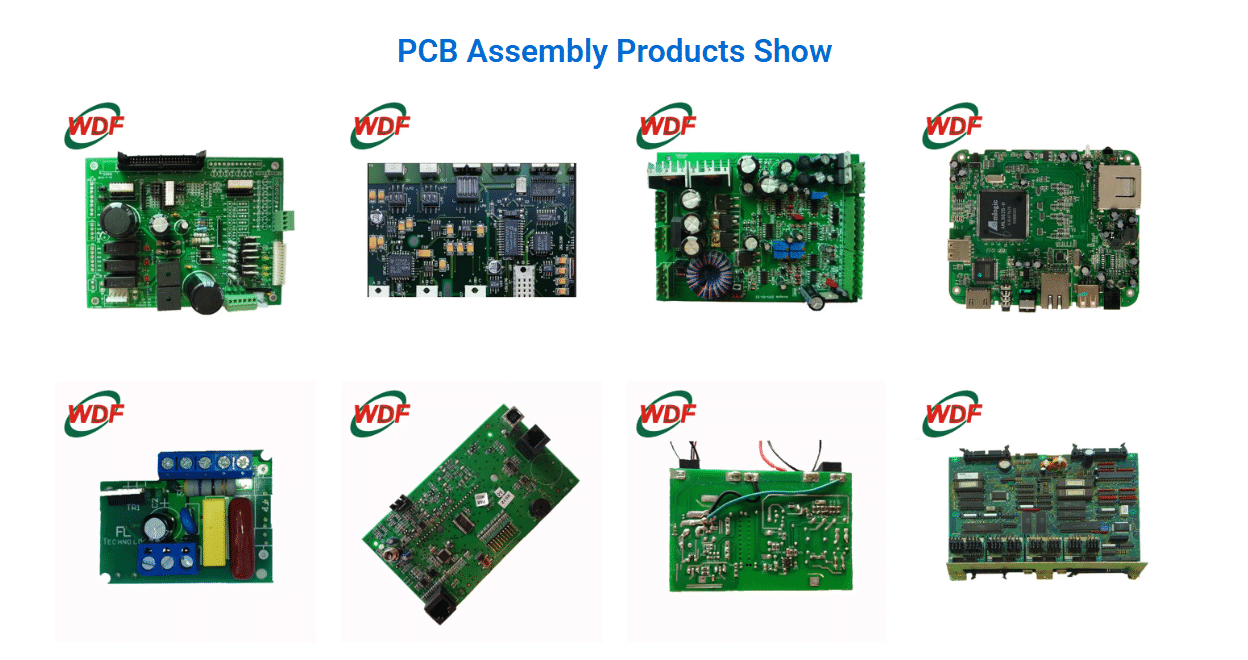

WonderfulPCB provides PCB Assembly for SMT and DIP/THT components, with processes that include reflow soldering, wave soldering, cleaning, testing and quality checks. The project documentation should state any special handling, soldering or cleaning requirements that affect the finished assembly.
An assembly drawing should also identify:
- Parts requiring manual installation
- Components mounted away from the board
- Unusual lead-forming requirements
- Adhesive or staking instructions
- Conformal-coating exclusions
- Connectors requiring precise alignment
- Components that must remain unpopulated
Control Component Substitutions
Substitutions may help a project respond to shortages, but an uncontrolled replacement can change electrical performance or firmware behaviour.
The design team should decide which parts may be substituted and which parameters must remain unchanged. For a capacitor, those parameters may include capacitance, voltage rating, dielectric, tolerance and package size. For an integrated circuit, engineers may need to review pin compatibility, timing, thermal characteristics and software support.
Changes that could affect safety, reliability or regulatory compliance require formal engineering approval.
Checks to Complete Before Requesting a Quote
A supplier can provide a more useful quote when the design package is complete and internally consistent. A release review helps ensure that cost and lead-time estimates are based on the intended product.
Run a Manufacturability Review
Check trace widths, spacing, annular rings, drill sizes, copper clearances and solder-mask openings against the proposed manufacturing capabilities.
A DFM review may identify features that are technically achievable but unnecessarily difficult or expensive to produce. Small design adjustments can improve yield while preserving the product’s function.
Review Component Availability
Confirm availability, lead times and lifecycle status for critical parts. The BOM should distinguish between customer-supplied components and parts the assembly provider is expected to source.
For parts with limited supply, teams may approve alternatives or purchase stock before the production schedule is fixed. Packaging and moisture-sensitivity requirements should also be considered.
Confirm Enclosure and Connector Alignment
Compare the released board files with the current enclosure model. A connector moved by a few millimetres can make an otherwise functional PCBA unusable.
Components crossing the boundary between the PCB and enclosure require careful review. These may include USB ports, switches, LEDs, displays, antennas and external cable connectors.
Define Inspection and Testing
Testing should be planned while the PCB can still be changed. Early planning allows engineers to include test points, programming headers and fixture access.
The production plan may include:
- Automated optical inspection
- X-ray inspection for hidden solder joints
- In-circuit testing
- Firmware programming
- Power-on checks
- Functional testing
- Communication-interface testing
- Visual acceptance criteria
The documentation should state who provides the firmware, fixtures and test instructions. Expected results and failure procedures should be clear enough for another team to follow.
Coordinating Fabrication and Assembly
Some projects use separate suppliers for PCB fabrication, component sourcing and assembly. This approach requires careful control of file revisions, responsibilities and delivery schedules.
A connected workflow can reduce the number of handoffs. When one supplier covers the bare board and the PCBA, technical questions can be answered against the same release package instead of being re-explained to a second vendor.
The product owner still needs to approve the released files, alternative components and acceptance criteria. Clear ownership remains essential regardless of how many suppliers participate.
Frequently Asked Questions
What files does a PCB manufacturer usually need?
A standard fabrication package commonly includes Gerber files, drill files, a fabrication drawing and notes covering the stack-up, materials, copper weight, surface finish and special tolerances. Requirements vary with the board and manufacturing process.
Is a working prototype ready for mass production?
A working prototype usually requires further review. Engineering modifications must be incorporated into the design files, component availability must be checked, and the PCB should be validated against mechanical and manufacturing constraints. A pilot build can provide useful evidence before a larger order.
Who should approve component substitutions?
A qualified member of the product’s engineering team should approve any substitution that could affect electrical behaviour, firmware compatibility, reliability, safety or regulatory compliance.
When should functional testing be defined?
Testing should be considered before the PCB layout is finalised. This gives engineers time to add test points, programming connections and fixture access.
Why should all production files share a revision?
A common revision prevents a new PCB layout from being assembled with an outdated BOM, drawing or placement file. Every released item should belong to the same controlled production package.
Turn the Prototype Into a Repeatable Product
Moving from a successful prototype to production requires a complete record of the decisions behind the design. Manufacturing files, assembly data, component information and testing requirements must describe the same approved version of the product.
A disciplined handoff gives suppliers better information for quoting and process planning. It also helps product teams catch mechanical, sourcing and documentation problems while revisions remain manageable. That preparation forms the bridge between a device that works once and hardware that can be built consistently.
