I walked into Vancouver Hackerspace the other day to hang out, There, in all of it’s colorful, tabletop printing beauty, was a new 3D printer and a smiling man named Brad (aka Sublime) giving a little demo on his Tantillus 3D Printer. It’s a small machine that packs a punch. The details were marvellous for such a small FDM printer, better than many I’ve seen (and I’ve seen a LOT). The clear acrylic plastic case, sheer speed and detailed prints are a must see. Here’s a look.

Tantillus 3D Printer

I was talking with Brad and I asked him what separates the Tantillus from other RepRap derived machines. “The Tantillus’s unique cable drive mechanism gives unprecedented print quality from an FFF (Fused Filament Fabrication) printer. It’s low moving mass allows it to accelerate at incredible speeds which reduces build times and improves surface finish.” No doubt – I haven’t heard of too many examples of 10 micron printing out there. One of his machines integrates the spool into the case, a touch I appreciated greatly as I’m always untangling the plastic filaments. And the speed? Well, you’ll have to see…

YouTube video

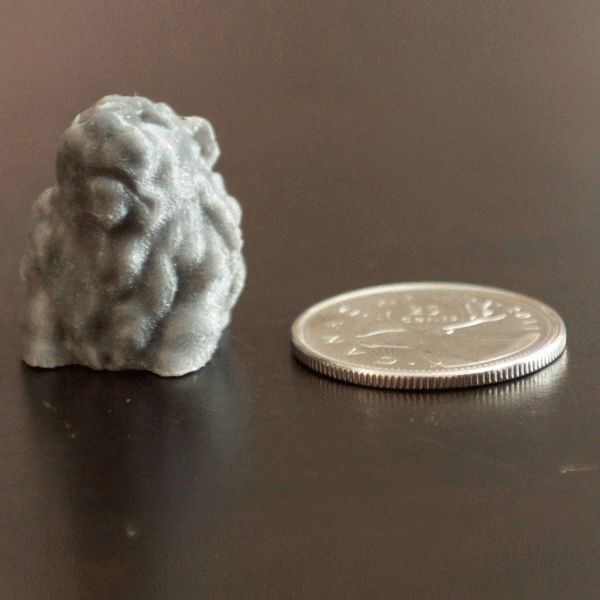

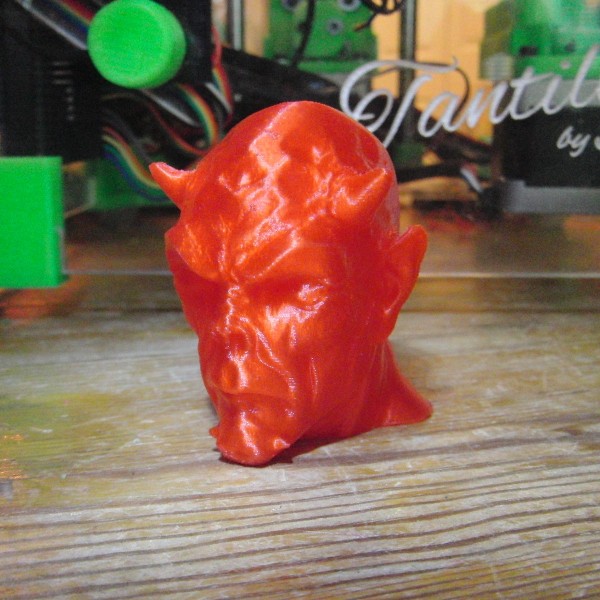

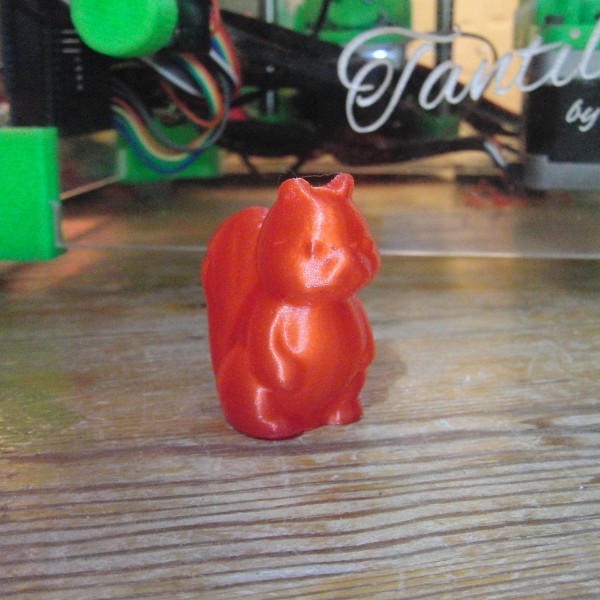

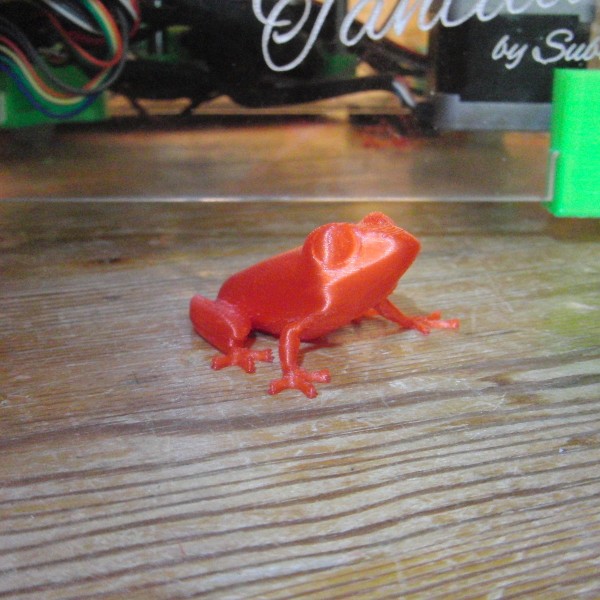

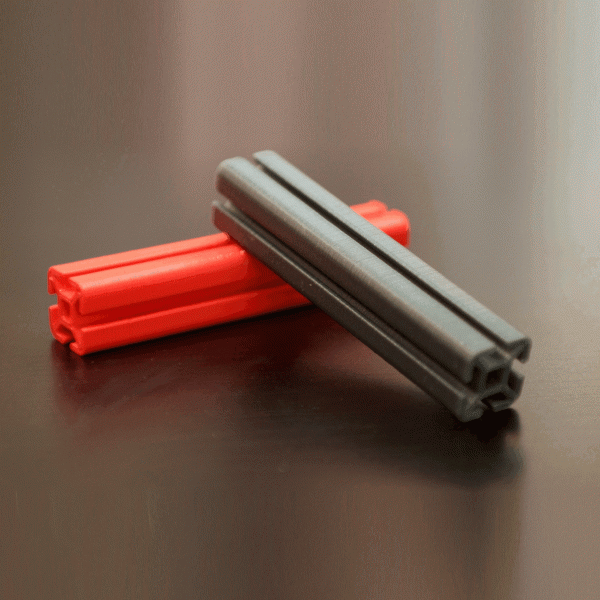

100 micron layers? Not a problem. (He’s gotten 10 microns – guess which picture at the bottom)

YouTube video

LCD Screen? Yay!

YouTube video

The Specs

  • Compact case (240mm x 240mm x 300mm).
  • Light weight (4kg with power supply).
  • Capable of reproducing its entire case.
  • Commonly-available parts.
  • Computer-less printing via LCD screen and SD card.
  • Mobile printing.
  • 100% opensource
  • High speeds of 300mm/s + are possible.
  • High resolution printing (X/Y step resolution of 8 micron per step,  Z step resolution of 0.4 micron per step) minimum X/Y radius limited by nozzle diameter, Z resolution limited by the properties of the plastic being used.
  • Quiet operation.
  • Build area of 100mm x 100mm x 100mm

The Tantilus is on Indiegogo right now with your opportunity to snag one ending Thursday, June 14th. And what’s this? Only $850 for a kit? Get out of here! That’s craziness. So if you’re looking for a great 3D Printer, buy a Tantilus. DO IT. This is one of the highest quality printers I’ve seen at that price.

PS: Solidsmack wasn’t paid by Tantillus. Honest!

Source: Tantillus
